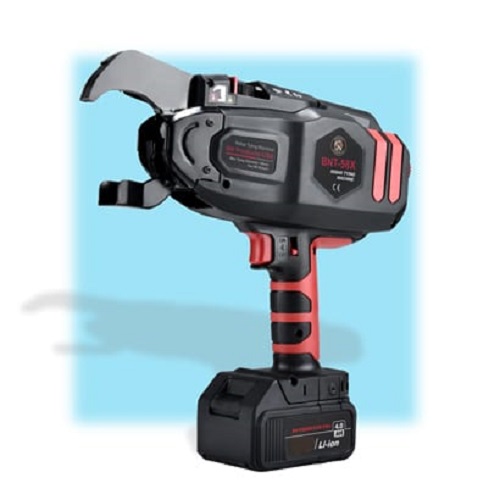

The BNT-58X is the next generation rebar tying tool. It is lightweight and has a compact, easy to hold, glove friendly grip. The tool is well balanced and is designed to tie rebars as fast as you can pull the trigger. Ties up to #8 x #8 rebar. This tool features a one-piece CNC rigid nose piece. The long life battery will give you over 5000 ties on a single charge. We include an extra battery that can be charging when the tool is in use. Our standard wire is zinc-plated to inhibit rust and corrosion. The 18V Lithium-Ion power pack quick-charge battery drives the tool's brushless motors. Each tool comes with two batteries, a quick charger and four spools of wire in a tough molded plastic carrying case ready to use. It weighs 5.8 lbs and has a one year warranty.This tool will save you time and money. Note: We also now offer wire made here in the USA!
SPECIFICATIONS | | |
Maximum Rebar Size
| | #10 (1-1/4in., 32 mm) x #10 (1-1/4in., 32 mm) with the #64 wire guide installed |
Tool Weight
| | 8.4 lbs (3.8 kg) with battery & wire spool
|
| Tool Dimensions For Horizontal Work (H x W x L) | | 7.02in. x 3.12in. x 25.74in. |
| Tool Dimensions For Vertical Work (H x W x L) | | 11.31in. x 3.12in. x 22.62in. |
Number of Parts
| | 75 |
Tying Speed
| | 1.6 seconds |
| Tie Wraps/Wire Size | | (2) tie wraps of 18 gauge or 1.0 mm |
| Wire Spool Length | | 148 feet (45 m) |
Ties Per Coil
| | 120 to 200 |
| Wire Carton | | 40 spools |
Ties Per Battery Charge
| | 750 ties (4-5 wire spools) |
Torque Adjustment (increases wire tie tightness)
| | 0-9 |
Standard Wire Guide
| | #32 wire guide ties maximum #6 x #6 rebar |
| Optional Wire Guides (right size wire guide decreases wire usage and tying speed) | | #26 wire guide ties maximum #3 x #4 rebars
#51 wire guide ties maximum #8 x #8 rebars
#64 wire guide ties maximum #10 x #10 rebars
|
Battery Type
| | 12V Ni-MH (nickel-metal hydride)
|
Charging Time
| | 30 minutes
|
Battery Charger
| | 110-240 VAC, 50/60 Hz
|
Operating Humidity
| | 90% or under
|
Operating Temperature
| | 32 - 122 degrees F (0-50 degrees C)
|
Warranty Period
| | 12 Months |
