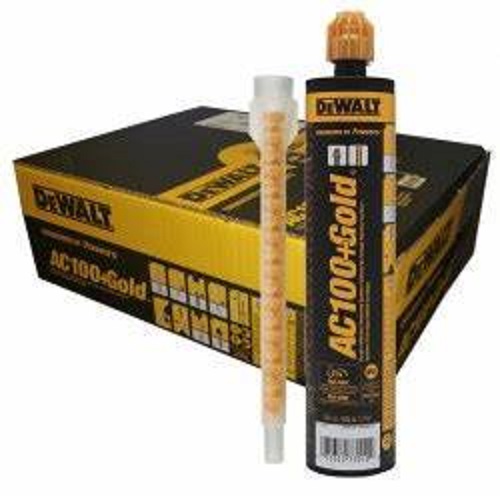

The AC100+ Gold is a two-component vinylester adhesive anchoring system. The system includes injection adhesive in plastic cartridges, mixing nozzles, dispensing tools and hole cleaning equipment. The adhesive is designed for bonding threaded rod and reinforcing bar elements into drilled holes in concrete and masonry base materials. It can be considered for use in solid base materials as well as hollow base materials with screen tubes.
APPROVALS AND LISTINGS
• International Code Council, Evaluation service (ICC-Es) EsR-2582 for concrete
• International Code Council, Evaluation service (ICC-Es) EsR-3200 for masonry
• International Code Council, Evaluation service (ICC-Es) EsR-4105 for Unreinforced Masonry (URM)
• Code compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC and 2012 IBC/IRC
• Tested in accordance with AsTM E488 / ACI 355.4 and ICC-Es AC308 for use in
structural concrete with ACI 318-14 Chapter 17 and ACI 318-11/08 Appendix D
• Compliant with NsF/ANsI standard 61 for drinking water system components – health effects;
meets requirements for materials in contact with potable water and water treatment
• Conforms to requirements of AsTM C 881 and AAsHTO M235, Types I, II, Iv and v,
Grade 3, Classes A & B (meets Type III with exception of elongation)
