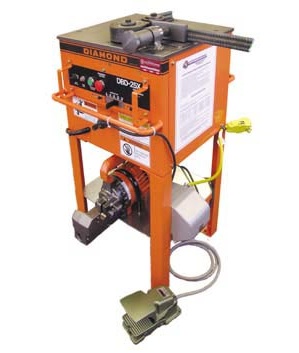

ASSEMBLED SKID UNIT, 1" #8 GRADE 60 REBAR BENDER AND CUTTER

Related Items:

Bon 12-359 Rebar Cutter & Bender

Bon 12-359 Rebar Cutter & Bender

Price: $405.00

Bon 12-367 Rebar Cutter & Bender Replacement Jaws

Bon 12-367 Rebar Cutter & Bender Replacement Jaws

Price: $78.50

Item #: BNDBC-2520
Availability: In Stock
Usually ships In 1-3 Business Days

DBC2520 BN PRODUCTS

  • Bend Up To #7 (7/8", 22 mm) Grade 60 Rebar
  • Cut Up To #6 (3/4", 19 mm) Grade 60 Rebar
  • Bending Speed - 7 Seconds (180 degrees), Cutting Speed - 3 Seconds
  • Combination of DBD-25X Rebar Bender and DC-20WH Rebar Cutter
  • Includes Foot Pedal Control Switch For Hands Free Operation
  • Toggle Switch Allows For Easy Change Between Cutting or Bending
  • Standard GFI Plug Safety Feature
  • Ships Complete With BCSE-25X Stand (some assembly required) and Bending Roller Set (6 pc) In Steel Carrying Case

*Free UPS Ground Shipping within the contiguous USA


Price: $8,194.65

    Quantity:

    DBC2520 & DBC2525

    These are essential combination rebar bender and cutter units. They simply combine the very popular DBD-25X bender with the DC-20WH or DC-25X rebar cutter both together on a stationary stand.

    The main advantage to owning this versatile combination unit is that the rebar cutter can be simply removed and used in any portable application or locked into a stationary position and then operated by a standard foot pedal switch.

    The other advantage is production; the bender table is at the ideal working height and the DBD-25X bends rebar from 0 -180 degrees. The BCSE-25X combination stand joins the bender & cutter both together.

    DBC-2520 Rebar Cutter / DBD-25H Rebar Bender COMPLETE UNIT

    DBC-2520
    Max. Cutting#6 or 3/4" Grade 60
    Max. Bending#7 or 7/8" Grade 60
    Cutter Power115 Volt 50/60 Hz -10 amps
    Bender Power115 Volt 50/60 Hz -12 amps
    Total Weight (kg)250 lbs. (113.5 kg)
    Dimensions LxWxH19.25"(490 mm) x 24.75" (629 mm) x 37.25"(946 mm)
    DBC-2525
    Max. Cutting#6 or 3/4" Grade 60
    Max. Bending#7 or 7/8" Grade 60
    Cutter Power115 Volt 50/60 Hz -10 amps
    Bender Power115 Volt 50/60 Hz -12 amps
    Total Weight (kg)250 lbs. (113.5 kg)
    Dimensions LxWxH19.25"(490 mm) x 24.75"(629 mm) x 37.25"(946 mm)
