Wire-Bond #2000 Wall Ties – Durable Masonry Ties for Veneer & Structural Wall Systems
22 Ga Corrugated Wall Ties 7/8in. x 7in. Stainless Steel
  • 22 Ga Corrugated Wall Ties 7/8in. x 7in. Stainless Steel
  • 22 Ga Corrugated Wall Ties 7/8in. x 7in. Stainless Steel
  • 22 Ga Corrugated Wall Ties 7/8in. x 7in. Stainless Steel-1000 pc - WT-22GA-7-SS

Related Items:

16 Ga Corrugated Wall Ties 7/8in. x 7in. Stainless Steel

16 Ga Corrugated Wall Ties 7/8in. x 7in. Stainless Steel- 400 pcs

Price: $325.00

16 Ga Corrugated Wall Ties 7/8in. x 7in. Mill Galv

16 Ga Corrugated Wall Ties 7/8in. x 7in. Mill Galv- 1000 pcs

Price: $363.00

Item #: WT-22GA-7-SS
Availability: Stock
Usually ships In 2-5 Business Days

  • Anchors Masonry to Masonry
  • Standard 7in. (178mm) long x 7/8in. (22mm) wide
  • 2 Perforated Nail Holes
  • Available; Hot Dip Galvanized, Mill Galvanized, Stainless Steel
  • Available 16 gauge 22 gauge
  • Custom sizes available upon request
  • Packed: 500pc per Box x 2 boxes
  • Price: $500.00

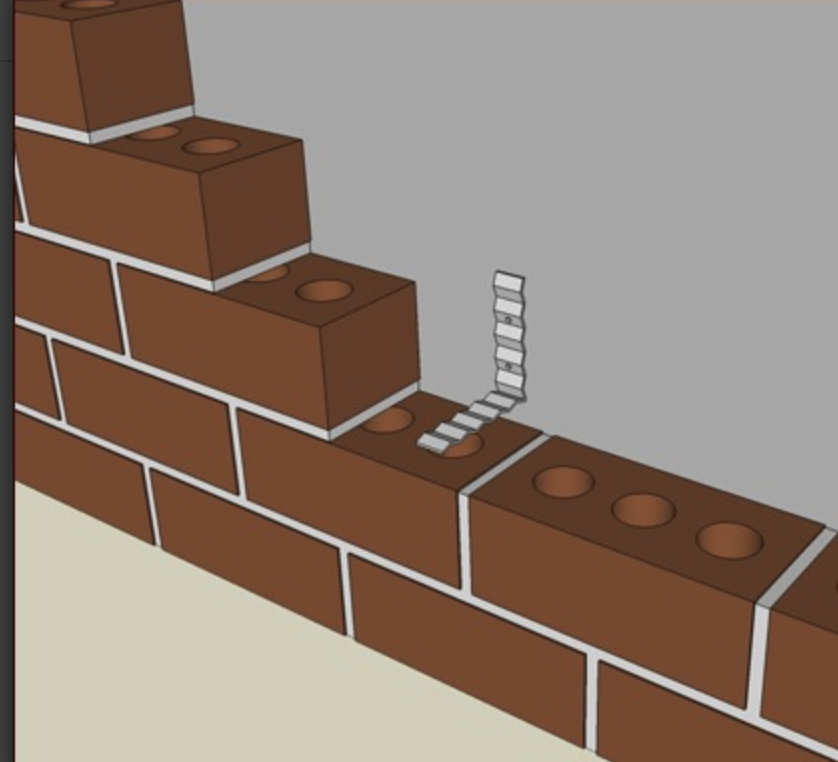

      Corrugated wall ties are the fundamental component used to tie a masonry veneer (such as a brick or stone façade) back to its structural backing, typically wood or steel framing. These ties are designed to transfer lateral loads, like wind pressure, and to accommodate slight differential movement between the two wall systems, ensuring long-term stability, safety, and structural integrity. Their distinctive "wavy" or corrugated shape is key to their performance, providing superior mechanical grip within the mortar joint. The unique corrugated design creates a powerful "keying" action within the hardened mortar. This mechanical lock is far more effective than a smooth tie at resisting pull-out and shear forces, ensuring a robust connection that lasts the lifetime of the building.
